Innovis INVISABOLT for BB-ADJ

SKU: 171BB-INVISIBOLT

Weight: 2.15 lbs

Write a review | No reviews for this product.

Adjustable for up to 5 feet!

Better-Bench is engineered for a 400 lb load capacity.Better Bench is designed to be long lasting & corrosion resistant. It can be used in wet or dry locations; mount to any ICBO approved substrate material.

TO DETERMINE SUPPORT REQUIREMENT:

  • Mounting wall to wall up to 36″: No additional support required
  • Mounting wall to wall up to 63″: One(1) BT-17S centered in span OR Two(2) Invisabolt supports
  • Mounting on a back wall and one side wall up to 36″: One(1) BT-17S within 6″ of open-end OR 2 Invisabolt supports
  • Mounting on a back wall and one side wall up to 63″: Three(3) Invisabolt supports required
  • Mounting with no side support up to 36″: Two(2) Invisabolt supports required
  • Mounting with no side support up to 48″: Three(3) Invisabolt supports required
  • Mounting with no side support up to 63″ max span: Four(4) Invisabolt supports required

*** 46 Minimum structural wood blocking must be installed flush to the front face of studs before placement of tile substrate when using the Invisabolt Support system***

See Invisabolt Installation

Price: $57.11 - HD Anchor for BB-ADJ

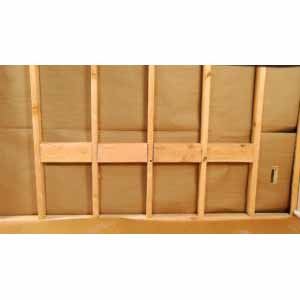

4x6 Wood Blocking4x6 wood blocking

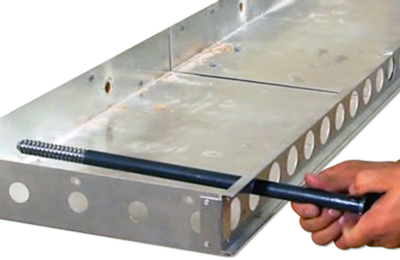

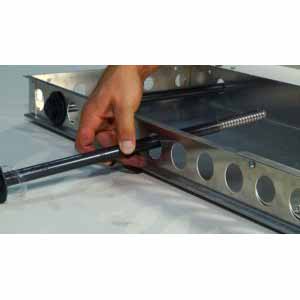

Position InvisaboltPosition Invisabolt

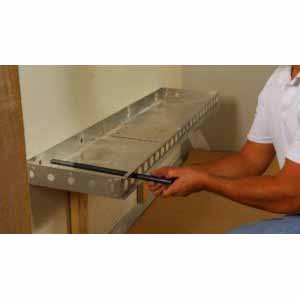

Install InvisaboltInstall Invisabolt

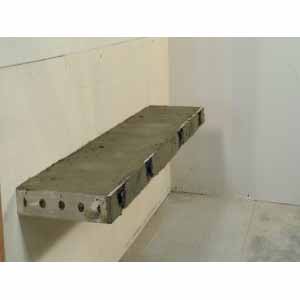

Finished InstallationFinished Installation
  • Specifications
  • Description
  • Installation
  • Reviews
Sold by the: Piece
Units per Box: 1
Weight each: 2.125 lbs.
Weight per Box: 2.5 lbs.
Material: Steel
Finish: Natural
Installation Video

Easy to Install!


Click to view an installation Demo video.
