Terra Tile 12 x 12 x 7/16

SKU: 505TER-XXX1212

Weight: 55 lbs

Write a review | No reviews for this product.

Mission Tile Series floor & paving tile is an unglazed, homogeneous, extruded tile which has been designed and manufactured to combine a pleasing appearance with superior technical characteristics.

Ideal for residential, commercial and industrial applications. They are well suited for use in commercial kitchens, restaurants, shopping centers, pathways, factories, railway stations, and food processing plants where their natural, slip resistant, tough, unglazed surface allows easy maintenance.
  • Indoor & Outdoor
  • Slip Resistant
  • Scratch & Water Resistant
  • Repels Chemicals
  • Flat & Square
  • Water & Frost Resistant
Discounts on Orders over 500 Sq Ft

THIS TILE CANNOT NOT SHIP VIA UPS Ground.
ALL SHIPMENTS ARE LTL CARRIER ONLY
UPON PROCESSING SHIPPING PRICE MAY BE MODIFIED
FREE SHIPPING ON ORDERS OVER $1,000

Price: $111.13 - Sold in full Boxes
Minimum 5 Boxes (55 Sq Ft)

Colors Available :
4 Colors4 Colors
4 Colors4 Colors

SPECIFICATIONS

Description
Extruded kiln-fired clay tiles
Applications
Interior or exterior use: Pool and spa copings, barbeques, outdoor countertops, picnic tables, masonry benches, water      foundations, masonry wall and post caps, glazed kitchen countertops, fireplace mantels and hearths

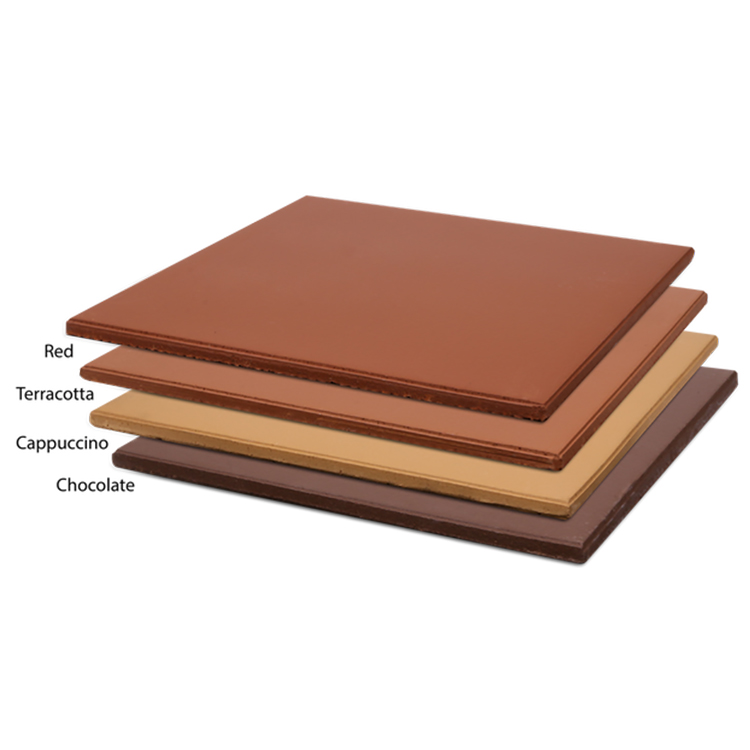

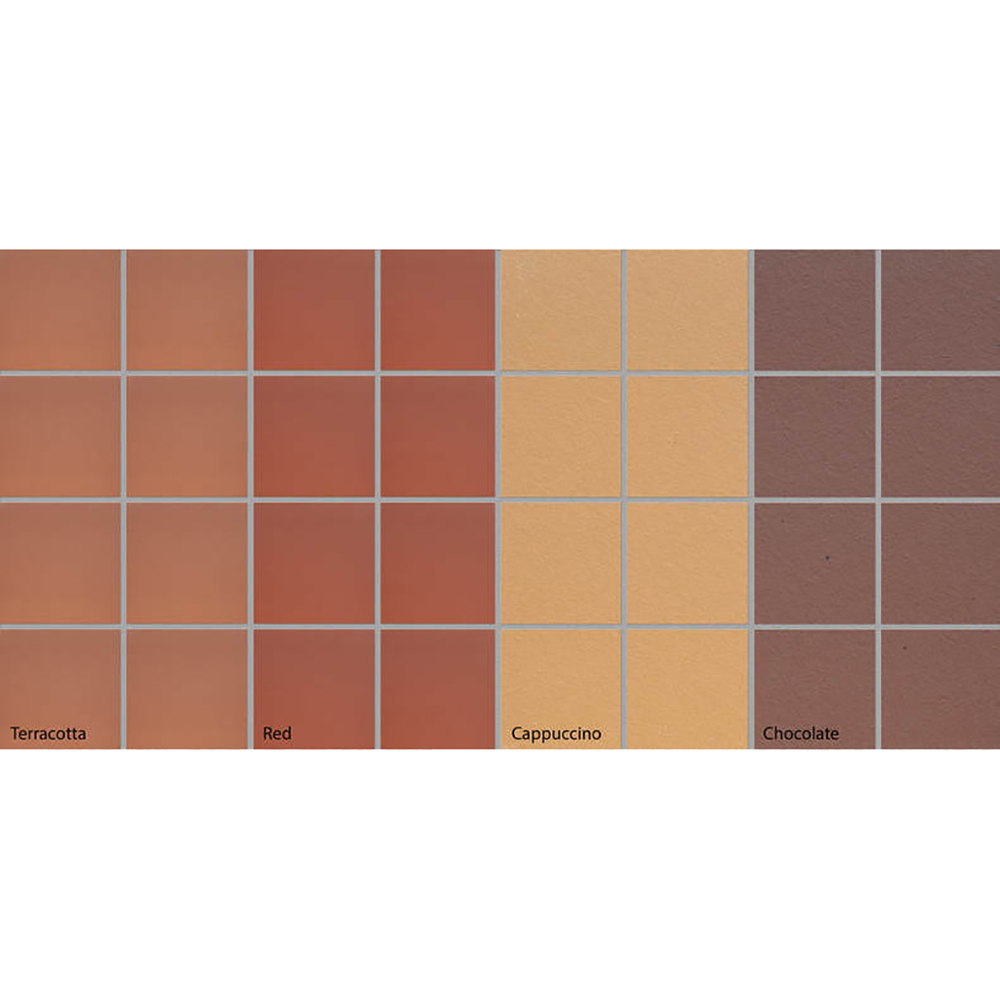

Colors
Red, Terracotta, Cappuccino, Chocolate
Sizes
12" x 12" x 1/2" Nominal; Special Order: 16" x 16" x 1/2" Nominal; 20" x 20" x 1/2" Nominal; 24" x 24" x 1/2" Nominal
Actual Size
11 3/4" x 11 3/4" x 7/16"
Edge detail
Finished
Grout joint
3/8" recommended
Weight
12" x 12": 4.7 lbs.; Step nose: 5.8 lbs.
Surface
Smooth natural clay surface (unglazed)
Back
Notched to provide a better bonding surface
Trim
Step nose
Water absorption
7% range
Freeze/thaw
Can use in a freeze/thaw environment if not in standing water
Bond strength
Greater than 50 psi standard
Warpage
Meets 1% standard allowed on any edge
Facial size variation
Meets 3% standard variance
Thickness
Meets 0.4” standard allowed
Wedging
Meets 1% standard allowed
Breaking strength
Meets or exceeds 250 lbs. standard
Chemical resistance
17 day immersion - no visible effects
Modulus of rupture
Exceeds 2000 psi (no standard)
Scratch hardness
6.0 range, MOHS scale (no standard)
Coefficient of friction
​Meets 0.6 recommended wet standard
  • Specifications
  • Description
  • Installation
  • Reviews
Sold by the: Box
Units per Box: 11
Weight each: 5 lbs.
Weight per Box: 55 lbs.
Material: High Fire Clay
Finish: Unglazed
Tile Size: 12x12x7/16
Color: Varies
Unit Size: 1 Sq. Ft.
Sq. Ft. per Box: 11 Sq. Ft.
Thickness: 7/16"
Life Cycle:
Tile floor and paving products are some of the longest lasting products available. A recent study conducted by the Tile Council of North America found tile to be the best value among competing floor covering products based specifically on the price and longevity of the product.
Manufacturing Process:
 • Unfired production clay is reground into subsequent product batches.
 • No waste water results from the manufacturing process.
 • Heat given off from the kilns is recovered and re-used as a heat source for the dryers.
 • All fired ware which is not packaged as 1st quality product is re-ground, categorized by color, and becomes an integral ingredient for subsequent product batches.
 • Cartons contain the highest % of recycled material available. All cartons are recyclable.
IMPORTANT INSTALLATION POINTS - PLEASE REVIEW
Install tiles from multiple random packs at the same time. Packs should be selected at random from multiple pallets where possible.
Follow the recommended grout gaps as shown in the specifications above.
• Install tiles with underside fixing ribs all running in the same direction wherever possible.
• Flexible 1/2 inch expansion or movement joints should be installed along restrained perimeters of installed area, around rigid interruptions, and every 13 to 16 feet across an expanse of floor or paving. Or follow local standards when available.
Note: For clarification of any point please contact us.
No claim for product defects can be considered after installation.
